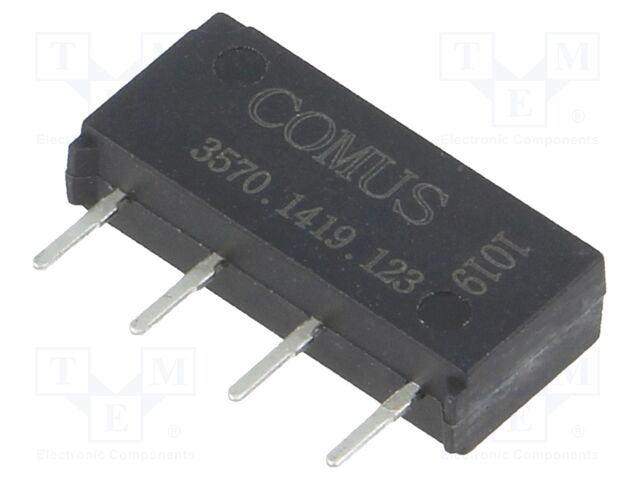

3570.1419.123 COMUS

Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W, Operating temperature: -40...85°C, Type of relay: reed switch, Relay series: 3570, Rated coil voltage: 12V DC, Coil voltage min.: 9V DC, Coil voltage max.: 16V DC, Switched voltage: max. 200V DC, Switching capacity: 10W, Contact resistance: 0.15Ω, Relay features: high reliability, Case: SIP, Terminal pitch: 3.81mm, Optional equipment: diode, Mounting: THT, Contact current max.: 0.5A, Body dimensions: 15.24x6.98x3.81mm, Coil resistance: 1kΩ, Contacts configuration: SPST-NO, кількість в упаковці: 1 шт.
