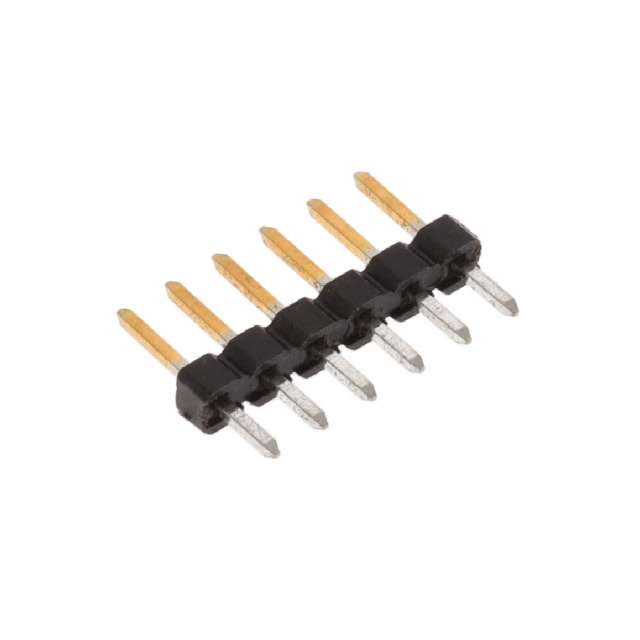

2355177-6 TE Connectivity AMP Connectors

Description: 6P,2MM,BRK HDR,SRVT,2.8,0.38AU,T, Packaging: Tube, Connector Type: Header, Breakaway, Voltage Rating: 125VAC/DC, Current Rating (Amps): 2A, Mounting Type: Through Hole, Number of Positions: 6, Number of Rows: 1, Style: Board to Board, Operating Temperature: -40°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.110" (2.79mm), Insulation Height: 0.059" (1.50mm), Shrouding: Unshrouded, Overall Contact Length: 0.327" (8.30mm), Insulation Material: Thermoplastic, Contact Length - Mating: 0.157" (4.00mm).
