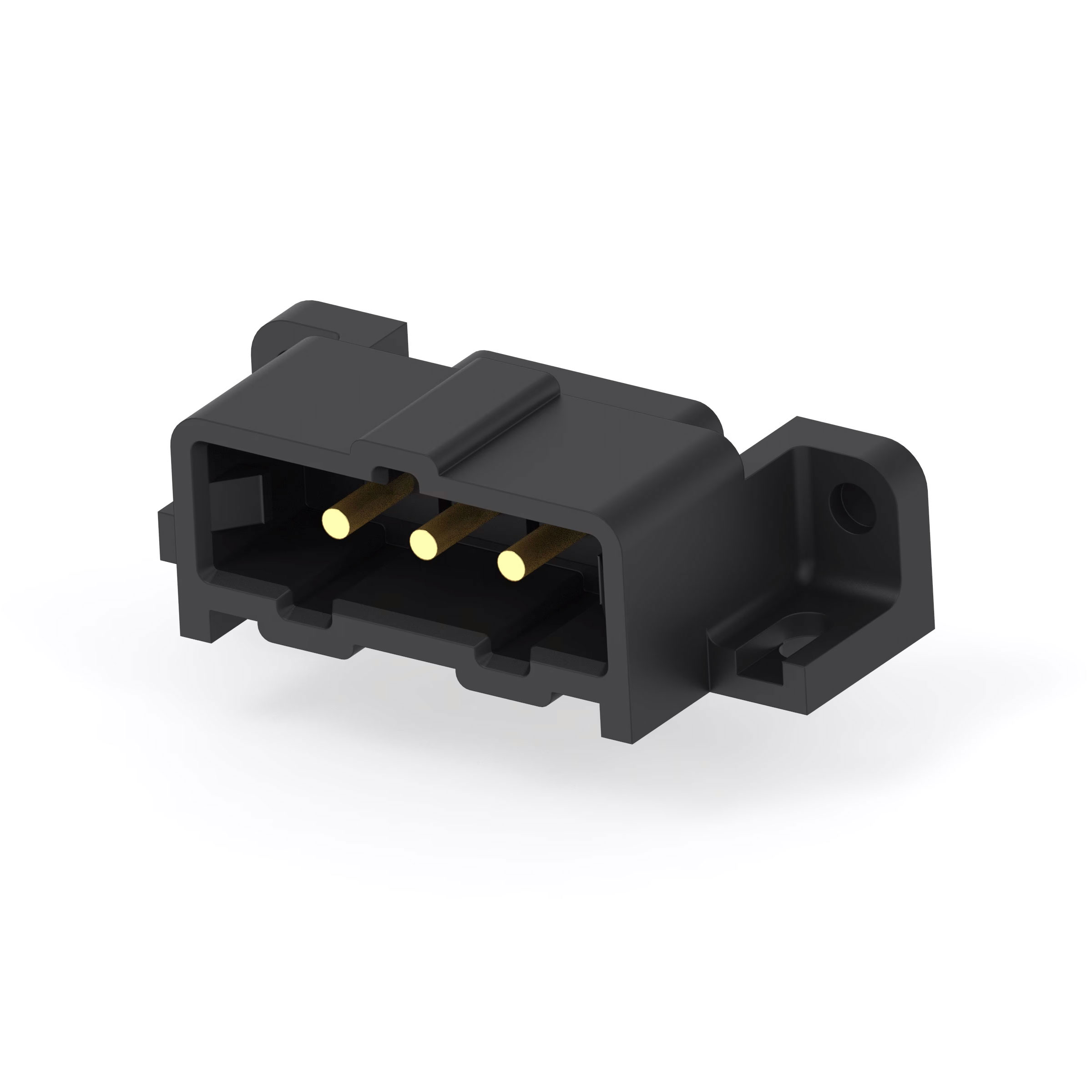

207541-7 TE Connectivity AMP Connectors
Виробник: TE Connectivity AMP Connectors
Description: CONN HEADER R/A 3POS 5MM
Packaging: Tube
Features: Mounting Flange
Connector Type: Header
Voltage Rating: 600V
Current Rating (Amps): 7.5A
Mounting Type: Through Hole, Right Angle
Number of Positions: 3
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 130°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black, Red
Pitch - Mating: 0.197" (5.00mm)
Contact Finish - Mating: Gold or PdNi +Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.192" (4.88mm)
Insulation Height: 0.500" (12.70mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
Description: CONN HEADER R/A 3POS 5MM
Packaging: Tube
Features: Mounting Flange
Connector Type: Header
Voltage Rating: 600V
Current Rating (Amps): 7.5A
Mounting Type: Through Hole, Right Angle
Number of Positions: 3
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 130°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black, Red
Pitch - Mating: 0.197" (5.00mm)
Contact Finish - Mating: Gold or PdNi +Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.192" (4.88mm)
Insulation Height: 0.500" (12.70mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
на замовлення 352 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 810.03 грн |
14+ | 705.63 грн |
112+ | 612.29 грн |
Відгуки про товар
Написати відгук
Технічний опис 207541-7 TE Connectivity AMP Connectors
Description: CONN HEADER R/A 3POS 5MM, Packaging: Tube, Features: Mounting Flange, Connector Type: Header, Voltage Rating: 600V, Current Rating (Amps): 7.5A, Mounting Type: Through Hole, Right Angle, Number of Positions: 3, Number of Rows: 1, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 130°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Red, Pitch - Mating: 0.197" (5.00mm), Contact Finish - Mating: Gold or PdNi +Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.192" (4.88mm), Insulation Height: 0.500" (12.70mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon.
