![15150842601000 15150842601000](https://ce8dc832c.cloudimg.io/v7/_cdn_/2A/5C/80/00/0/574882_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new_render3d.png&wat_scale=100p&ci_sign=590c82a8bc5ebf50489ea2fb5fbcac508fbc1f10)

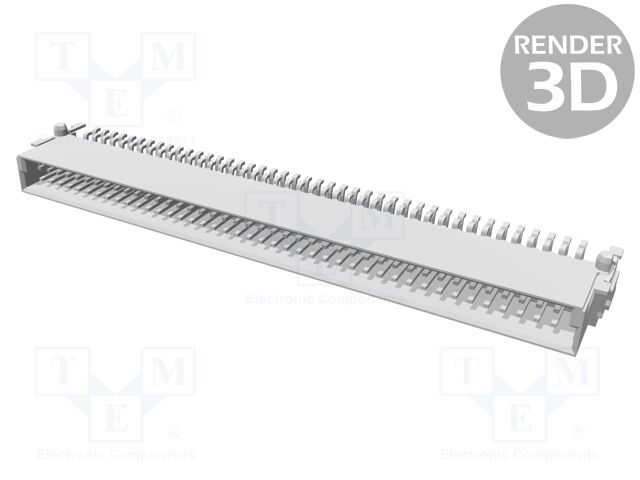

15150842601000 HARTING
![harflex.pdf](/images/adobe-acrobat.png)
![1515XXXX601.PDF](/images/adobe-acrobat.png)
Category: Board-to-board connectors
Description: Connector: PCB-cable/PCB; male; PIN: 84; 1.27mm; har-flex®; 2.3A
Operating temperature: -55...125°C
Electrical mounting: SMT
Contacts pitch: 1.27mm
Number of pins: 84
Mechanical durability: 500 cycles
Connector series: har-flex®
Engineering PN: har-flex ang m 84p PL1 560pcs
Type of connector: PCB-cable/PCB
Number of pieces on reel: 560pcs.
Kind of connector: male
Connector: socket
Spatial orientation: horizontal
Rated voltage: 150V AC
Maximum current: 2.3A
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис 15150842601000 HARTING
Description: HAR-FLEX ANGLED MALE, 84PIN, PL1, Features: Board Guide, Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Mounting Type: Surface Mount, Right Angle, Number of Positions: 84, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish - Post: Tin, Part Status: Obsolete, Contact Shape: Square, Insulation Height: 0.167" (4.25mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm).
Інші пропозиції 15150842601000
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
---|---|---|---|---|---|
![]() |
15150842601000 | Виробник : HARTING |
![]() Features: Board Guide, Solder Retention Packaging: Tape & Reel (TR) Connector Type: Header Mounting Type: Surface Mount, Right Angle Number of Positions: 84 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish - Post: Tin Part Status: Obsolete Contact Shape: Square Insulation Height: 0.167" (4.25mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) |
товар відсутній |
|
![]() |
15150842601000 | Виробник : HARTING |
![]() |
товар відсутній |
|
![]() |
15150842601000 | Виробник : HARTING |
![]() ![]() Description: Connector: PCB-cable/PCB; male; PIN: 84; 1.27mm; har-flex®; 2.3A Operating temperature: -55...125°C Electrical mounting: SMT Contacts pitch: 1.27mm Number of pins: 84 Mechanical durability: 500 cycles Connector series: har-flex® Engineering PN: har-flex ang m 84p PL1 560pcs Type of connector: PCB-cable/PCB Number of pieces on reel: 560pcs. Kind of connector: male Connector: socket Spatial orientation: horizontal Rated voltage: 150V AC Maximum current: 2.3A |
товар відсутній |
