10040292 FISCHER ELEKTRONIK
Виробник: FISCHER ELEKTRONIK
Category: Pin headers

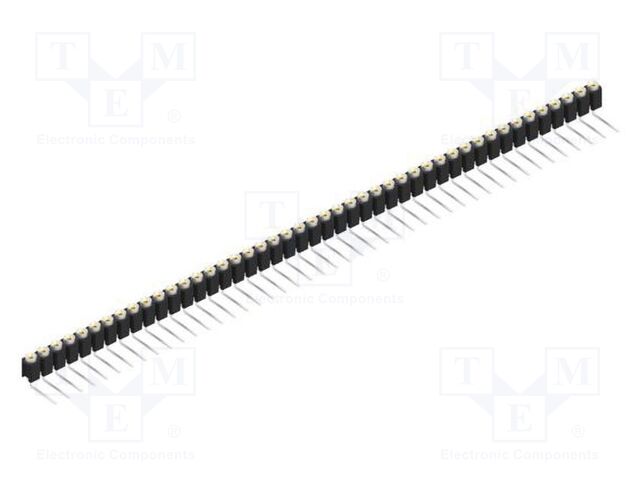

Description: Connector: pin strips; socket; female; PIN: 45; straight; 2.54mm
Operating temperature: -40...163°C
Flammability rating: UL94V-0
Number of pins: 45
Contact material: beryllium copper
Connector pinout layout: 1x45
Contacts pitch: 2.54mm
Electrical mounting: THT
Plating thickness: 0.75µm
Spatial orientation: straight
Rated voltage: 60V
Current rating: 1.5A
Contact plating: gold-plated
Kind of connector: female
Connector: socket
Type of connector: pin strips
кількість в упаковці: 1 шт
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 45; straight; 2.54mm
Operating temperature: -40...163°C
Flammability rating: UL94V-0
Number of pins: 45
Contact material: beryllium copper
Connector pinout layout: 1x45
Contacts pitch: 2.54mm
Electrical mounting: THT
Plating thickness: 0.75µm
Spatial orientation: straight
Rated voltage: 60V
Current rating: 1.5A
Contact plating: gold-plated
Kind of connector: female
Connector: socket
Type of connector: pin strips
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 10040292 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 45; straight; 2.54mm, Operating temperature: -40...163°C, Flammability rating: UL94V-0, Number of pins: 45, Contact material: beryllium copper, Connector pinout layout: 1x45, Contacts pitch: 2.54mm, Electrical mounting: THT, Plating thickness: 0.75µm, Spatial orientation: straight, Rated voltage: 60V, Current rating: 1.5A, Contact plating: gold-plated, Kind of connector: female, Connector: socket, Type of connector: pin strips, кількість в упаковці: 1 шт.
