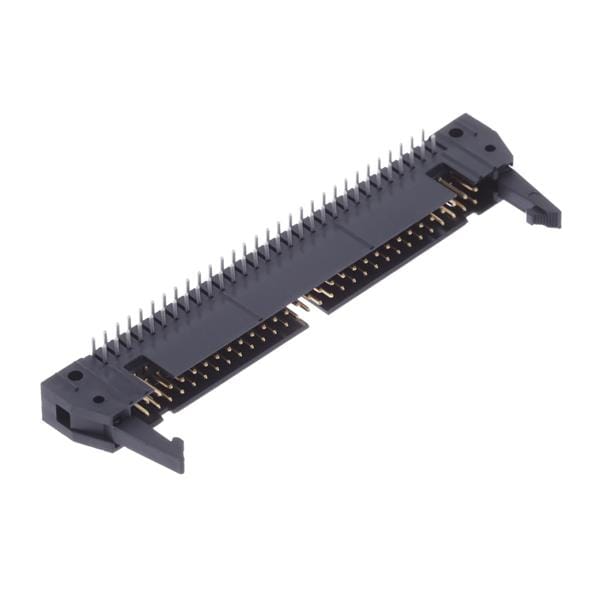

1-5499786-1 TE Connectivity AMP Connectors
Виробник: TE Connectivity AMP Connectors
Description: CONN HEADER R/A 60POS 2.54MM
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 1A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 60
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -65°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks, Long
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold or Gold-Palladium
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.110" (2.79mm)
Insulation Height: 0.315" (8.00mm)
Shrouding: Shrouded - 4 Wall
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
Description: CONN HEADER R/A 60POS 2.54MM
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 1A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 60
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -65°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks, Long
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold or Gold-Palladium
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.110" (2.79mm)
Insulation Height: 0.315" (8.00mm)
Shrouding: Shrouded - 4 Wall
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
на замовлення 634 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 952.46 грн |
10+ | 829.5 грн |
100+ | 719.81 грн |
500+ | 646.67 грн |
Відгуки про товар
Написати відгук
Технічний опис 1-5499786-1 TE Connectivity AMP Connectors
Description: CONN HEADER R/A 60POS 2.54MM, Features: Keying Slot, Mounting Flange, Packaging: Bulk, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 1A per Contact, Mounting Type: Through Hole, Right Angle, Number of Positions: 60, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -65°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Long, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold or Gold-Palladium, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.110" (2.79mm), Insulation Height: 0.315" (8.00mm), Shrouding: Shrouded - 4 Wall, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.240" (6.10mm).
Інші пропозиції 1-5499786-1 за ціною від 578.39 грн до 1098.41 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1-5499786-1 | Виробник : TE Connectivity | Headers & Wire Housings A/L UNIV HDR 60P RA LG LAT |
на замовлення 186 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||||||||
1-5499786-1 | Виробник : TE Connectivity | 154997861-TEC-0 IDC connectors |
товар відсутній |
