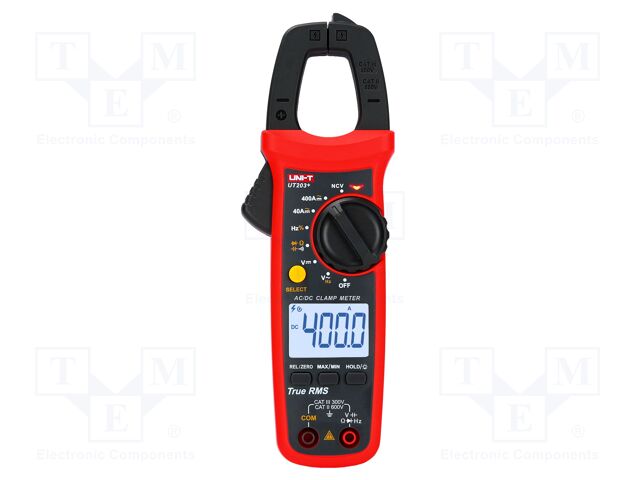

UT203+ UNI-T
Виробник: UNI-T
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 28mm; LCD
Type of meter: multifunction
Kind of meter: digital; pincers type
Measurement: AC current; AC voltage; continuity; DC current; DC voltage; duty cycle; frequency; resistance
Kind of display used: LCD
Display parameters: (4000)
True effective value measurement: True RMS
AC current measuring range: 40A; 400A
AC current measuring accuracy: ±(2.5% + 5 digit)
DC current measuring range: 40A; 400A
DC current measuring accuracy: ±(2.5% + 5 digit)
AC voltage measuring range: 4V; 40V; 400V; 600V
AC voltage measuring accuracy: ±(0.8% + 5 digit)
DC voltage measuring range: 400mV; 4V; 40V; 400V; 600V
DC voltage measuring accuracy: ±(0.5% + 2 digit)
Frequency measuring range: 10...10MHz
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 40MΩ
Resistance measuring accuracy: ±(0.8%+2 digit)
Power supply: battery R03 AAA 1,5V x2
Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; overflow indication; polarization indicator; REL function
Standard equipment: case; test leads
Conform to the norm: CAT II 600V; CAT III 300V; EN 61010
Dimensions: 215x63x36mm
Weight with battery: 235g
Max. diameter of measured cable: 28mm
Battery/ rechargeable battery: battery R03 AAA 1,5V x2
Continuity test: acoustic indication; <10Ω
Pollution degree: 2
Test: diodes
Duty cycle factor: 0.1...99.9%
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 28mm; LCD
Type of meter: multifunction
Kind of meter: digital; pincers type
Measurement: AC current; AC voltage; continuity; DC current; DC voltage; duty cycle; frequency; resistance
Kind of display used: LCD
Display parameters: (4000)
True effective value measurement: True RMS
AC current measuring range: 40A; 400A
AC current measuring accuracy: ±(2.5% + 5 digit)
DC current measuring range: 40A; 400A
DC current measuring accuracy: ±(2.5% + 5 digit)
AC voltage measuring range: 4V; 40V; 400V; 600V
AC voltage measuring accuracy: ±(0.8% + 5 digit)
DC voltage measuring range: 400mV; 4V; 40V; 400V; 600V
DC voltage measuring accuracy: ±(0.5% + 2 digit)
Frequency measuring range: 10...10MHz
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 40MΩ
Resistance measuring accuracy: ±(0.8%+2 digit)
Power supply: battery R03 AAA 1,5V x2
Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; overflow indication; polarization indicator; REL function
Standard equipment: case; test leads
Conform to the norm: CAT II 600V; CAT III 300V; EN 61010
Dimensions: 215x63x36mm
Weight with battery: 235g
Max. diameter of measured cable: 28mm
Battery/ rechargeable battery: battery R03 AAA 1,5V x2
Continuity test: acoustic indication; <10Ω
Pollution degree: 2
Test: diodes
Duty cycle factor: 0.1...99.9%
на замовлення 44 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 3523.31 грн |
