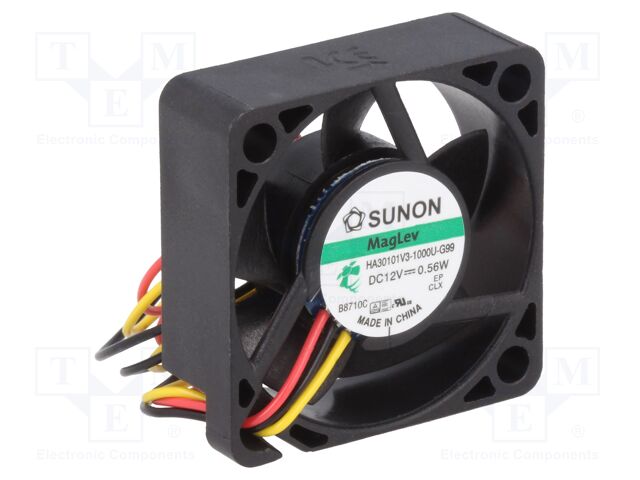

HA30101V3-1000U-G99 SUNON
Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 30x30x10mm; 5.92m3/h; 15.1dBA; Vapo; 28AWG
Supply voltage: 12V DC
Additional functions: autorestart
Operating voltage: 6...13.8V
Power consumption: 0.56W
Cable length: 0.145m
Static pressure: 2.54mm H2O
Noise level: 15.1dBA
Rotational rate/speed: 7000 (±20%)rpm
Current and power consumption tolerance: ±15%
Wire size: 28AWG
Signal output: F type
Kind of fan: axial
Min. insulation resistance: 10MΩ
Operating temperature: -10...70°C
Enclosure material: thermoplastic
Current rating: 25mA
Leads: lead x3
Type of fan: DC
Fan dimensions: 30x30x10mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 5.92m3/h
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 30x30x10mm; 5.92m3/h; 15.1dBA; Vapo; 28AWG
Supply voltage: 12V DC
Additional functions: autorestart
Operating voltage: 6...13.8V
Power consumption: 0.56W
Cable length: 0.145m
Static pressure: 2.54mm H2O
Noise level: 15.1dBA
Rotational rate/speed: 7000 (±20%)rpm
Current and power consumption tolerance: ±15%
Wire size: 28AWG
Signal output: F type
Kind of fan: axial
Min. insulation resistance: 10MΩ
Operating temperature: -10...70°C
Enclosure material: thermoplastic
Current rating: 25mA
Leads: lead x3
Type of fan: DC
Fan dimensions: 30x30x10mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 5.92m3/h
на замовлення 339 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
2+ | 382.45 грн |
10+ | 307.68 грн |
50+ | 266.71 грн |
200+ | 253.05 грн |
Відгуки про товар
Написати відгук
Технічний опис HA30101V3-1000U-G99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 30x30x10mm; 5.92m3/h; 15.1dBA; Vapo; 28AWG, Supply voltage: 12V DC, Additional functions: autorestart, Operating voltage: 6...13.8V, Power consumption: 0.56W, Cable length: 0.145m, Static pressure: 2.54mm H2O, Noise level: 15.1dBA, Rotational rate/speed: 7000 (±20%)rpm, Current and power consumption tolerance: ±15%, Wire size: 28AWG, Signal output: F type, Kind of fan: axial, Min. insulation resistance: 10MΩ, Operating temperature: -10...70°C, Enclosure material: thermoplastic, Current rating: 25mA, Leads: lead x3, Type of fan: DC, Fan dimensions: 30x30x10mm, Fan motor: brushless DC, Impeller material: thermoplastic, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: Vapo, Fan efficiency: 5.92m3/h, кількість в упаковці: 1 шт.
Інші пропозиції HA30101V3-1000U-G99 за ціною від 303.66 грн до 557.14 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HA30101V3-1000U-G99 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 30x30x10mm; 5.92m3/h; 15.1dBA; Vapo; 28AWG Supply voltage: 12V DC Additional functions: autorestart Operating voltage: 6...13.8V Power consumption: 0.56W Cable length: 0.145m Static pressure: 2.54mm H2O Noise level: 15.1dBA Rotational rate/speed: 7000 (±20%)rpm Current and power consumption tolerance: ±15% Wire size: 28AWG Signal output: F type Kind of fan: axial Min. insulation resistance: 10MΩ Operating temperature: -10...70°C Enclosure material: thermoplastic Current rating: 25mA Leads: lead x3 Type of fan: DC Fan dimensions: 30x30x10mm Fan motor: brushless DC Impeller material: thermoplastic Flammability rating: UL94V-0 Insulation class: A Kind of Bearing: Vapo Fan efficiency: 5.92m3/h кількість в упаковці: 1 шт |
на замовлення 339 шт: термін постачання 7-14 дні (днів) |
|
|||||||||||
HA30101V3-1000U-G99 | Виробник : Sunon | HA30101V3-1000U-G99 |
на замовлення 340 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
HA30101V3-1000U-G99 | Виробник : Sunon | DC Fans Axial Fan, 30x30x10mm, 12VDC, 0.1 " H2O, Vapo, 3x Wire, Auto Restart, Tach |
товар відсутній |
