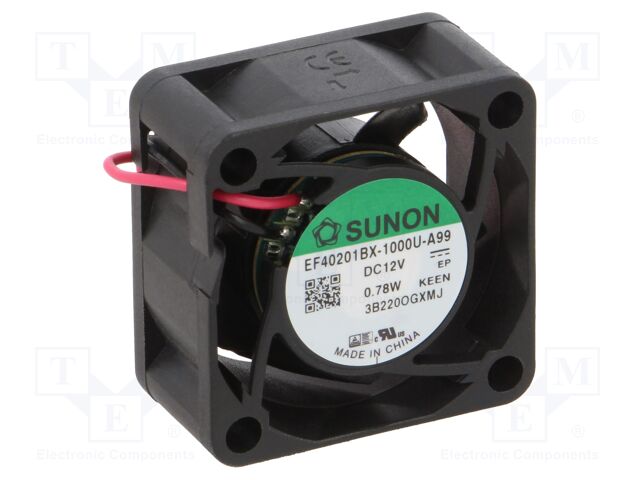

EF40201BX-1000U-A99 SUNON
Виробник: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x20mm; 18.7m3/h; 28.5dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V
Fan dimensions: 40x40x20mm
Power consumption: 0.78W
Current rating: 65mA
Fan efficiency: 18.7m3/h
Noise level: 28.5dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 8200rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.305m
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
на замовлення 442 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 485.41 грн |
| 10+ | 409.76 грн |
| 50+ | 375.98 грн |
| 200+ | 307.68 грн |
Відгуки про товар
Написати відгук
Технічний опис EF40201BX-1000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x20mm; 18.7m3/h; 28.5dBA; ball bearing, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6...13.8V, Fan dimensions: 40x40x20mm, Power consumption: 0.78W, Current rating: 65mA, Fan efficiency: 18.7m3/h, Noise level: 28.5dBA, Kind of Bearing: ball bearing, Rotational rate/speed: 8200rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.305m, Flammability rating: UL94V-0, Additional functions: autorestart; protection against reverse connection of power supply, Fan motor: brushless DC, кількість в упаковці: 1 шт.
Інші пропозиції EF40201BX-1000U-A99 за ціною від 369.22 грн до 582.5 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
EF40201BX-1000U-A99 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 40x40x20mm; 18.7m3/h; 28.5dBA; ball bearing Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 6...13.8V Fan dimensions: 40x40x20mm Power consumption: 0.78W Current rating: 65mA Fan efficiency: 18.7m3/h Noise level: 28.5dBA Kind of Bearing: ball bearing Rotational rate/speed: 8200rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.305m Flammability rating: UL94V-0 Additional functions: autorestart; protection against reverse connection of power supply Fan motor: brushless DC кількість в упаковці: 1 шт |
на замовлення 442 шт: термін постачання 7-14 дні (днів) |
|
||||||||||
| EF40201BX-1000U-A99 | Виробник : Sunon Fans |
Description: FAN AXIAL 40X20MM 12VDC WIRE Features: Auto Restart Packaging: Bulk Voltage - Rated: 12VDC Size / Dimension: Square - 40mm L x 40mm H Bearing Type: Ball RPM: 8200 RPM Air Flow: 10.8 CFM (0.302m³/min) Width: 20.00mm Termination: 2 Wire Leads Approval Agency: CCC, CE, cURus, TUV Fan Type: Tubeaxial Noise: 28.5dB(A) Static Pressure: 0.320 in H2O (79.7 Pa) Part Status: Active Power (Watts): 780 mW |
товар відсутній |
||||||||||||
 |
EF40201BX-1000U-A99 | Виробник : Sunon |
DC Fans DC Axial Fan, 40x40x20mm, 12VDC, Ball, Lead Wires, Auto Restart, 2018Q1-MP |
товар відсутній |
