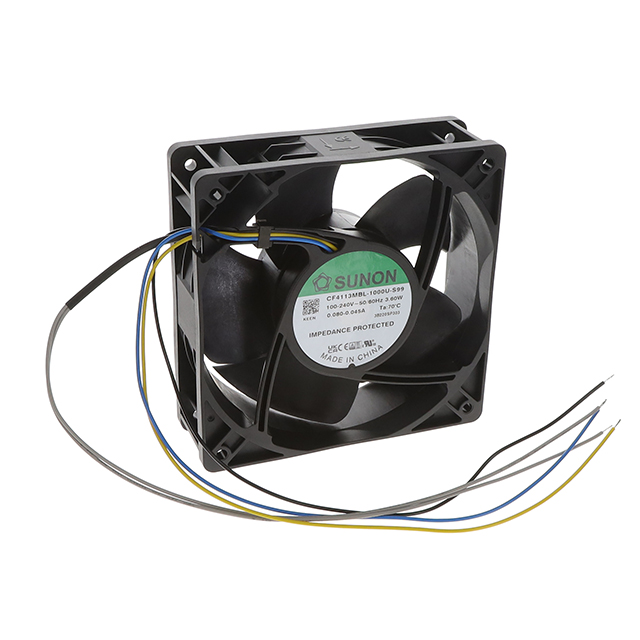

CF4113MBL-1000U-S99 Sunon Fans
Виробник: Sunon Fans
Description: EC FAN 120X120X38MM 100-240V PWM
Packaging: Box
Power (Watts): 3.60W
Features: Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Voltage - Rated: 100 ~ 240VAC
Size / Dimension: Square - 120mm L x 120mm H
Bearing Type: Ball
RPM: 3100 RPM
Air Flow: 90.1 CFM (2.52m³/min)
Width: 38.00mm
Operating Temperature: -13 ~ 158°F (-25 ~ 70°C)
Termination: 5 Wire Leads
Approval Agency: CE, cURus, TUV
Fan Type: Tubeaxial
Noise: 40.2dB(A)
Static Pressure: 0.310 in H2O (77.2 Pa)
Part Status: Active
Description: EC FAN 120X120X38MM 100-240V PWM
Packaging: Box
Power (Watts): 3.60W
Features: Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Voltage - Rated: 100 ~ 240VAC
Size / Dimension: Square - 120mm L x 120mm H
Bearing Type: Ball
RPM: 3100 RPM
Air Flow: 90.1 CFM (2.52m³/min)
Width: 38.00mm
Operating Temperature: -13 ~ 158°F (-25 ~ 70°C)
Termination: 5 Wire Leads
Approval Agency: CE, cURus, TUV
Fan Type: Tubeaxial
Noise: 40.2dB(A)
Static Pressure: 0.310 in H2O (77.2 Pa)
Part Status: Active
на замовлення 498 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 2908.5 грн |
10+ | 2557.72 грн |
40+ | 2460.58 грн |
80+ | 2157.24 грн |
120+ | 1990.13 грн |
280+ | 1959.75 грн |
Відгуки про товар
Написати відгук
Технічний опис CF4113MBL-1000U-S99 Sunon Fans
Category: EC Fans, Description: Fan: EC; axial; 230VAC; 120x120x38mm; 132m3/h; 40.2dBA; 3100rpm, Frequency: 50...60Hz, Manufacturer series: ECO, Operating temperature: -25...70°C, Type of fan: EC, Fan dimensions: 120x120x38mm, Fan motor: brushless EC, Impeller material: thermoplastic, Kind of Bearing: ball bearing, Fan efficiency: 132m3/h, Noise level: 40.2dBA, Rotational rate/speed: 3100rpm, Power consumption: 3.6W, Cable length: 0.33m, Min. insulation resistance: 10MΩ, Kind of fan: axial, Enclosure material: thermoplastic, Current rating: 45mA, Supply voltage: 230V AC, Leads: lead x5, кількість в упаковці: 1 шт.
Інші пропозиції CF4113MBL-1000U-S99
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
---|---|---|---|---|---|
CF4113MBL-1000U-S99 | Виробник : SUNON |
Category: EC Fans Description: Fan: EC; axial; 230VAC; 120x120x38mm; 132m3/h; 40.2dBA; 3100rpm Frequency: 50...60Hz Manufacturer series: ECO Operating temperature: -25...70°C Type of fan: EC Fan dimensions: 120x120x38mm Fan motor: brushless EC Impeller material: thermoplastic Kind of Bearing: ball bearing Fan efficiency: 132m3/h Noise level: 40.2dBA Rotational rate/speed: 3100rpm Power consumption: 3.6W Cable length: 0.33m Min. insulation resistance: 10MΩ Kind of fan: axial Enclosure material: thermoplastic Current rating: 45mA Supply voltage: 230V AC Leads: lead x5 кількість в упаковці: 1 шт |
товар відсутній |
||
CF4113MBL-1000U-S99 | Виробник : Sunon | EC Fans EC Axial Fan, 120x120x38mm, 100-240VAC, 4x Wire, Auto Restart, Tach/PWM |
товар відсутній |
||
CF4113MBL-1000U-S99 | Виробник : SUNON |
Category: EC Fans Description: Fan: EC; axial; 230VAC; 120x120x38mm; 132m3/h; 40.2dBA; 3100rpm Frequency: 50...60Hz Manufacturer series: ECO Operating temperature: -25...70°C Type of fan: EC Fan dimensions: 120x120x38mm Fan motor: brushless EC Impeller material: thermoplastic Kind of Bearing: ball bearing Fan efficiency: 132m3/h Noise level: 40.2dBA Rotational rate/speed: 3100rpm Power consumption: 3.6W Cable length: 0.33m Min. insulation resistance: 10MΩ Kind of fan: axial Enclosure material: thermoplastic Current rating: 45mA Supply voltage: 230V AC Leads: lead x5 |
товар відсутній |
