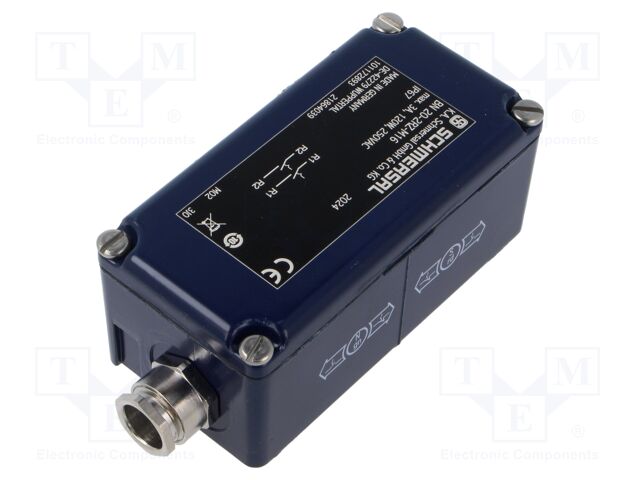

BN 20-2RZ-M16 SCHMERSAL
Виробник: SCHMERSAL
Category: Reed Sensors
Description: Reed switch; Range: 5÷50mm; Pswitch: 120W; 52x47x104mm; -25÷90°C
Body dimensions: 52x47x104mm
Manufacturer series: BN 20
Safety switches features: actuating distance depending on actuating magnet; key activation on the front; side key activation
Type of sensor: reed switch
Switched current, max.: 3A
Operating temperature: -25...90°C
Electrical connection: M16 x2
IP rating: IP67
Leads: screw
Body material: aluminium
Kind of output: bistable x2
Switched voltage: max. 250V AC; max. 250V DC
Switching capacity: 0.12kW; 120VA
Range: 5...50mm
Related items: 101057534; 101057536; 101060163; 151057553
кількість в упаковці: 1 шт
Category: Reed Sensors
Description: Reed switch; Range: 5÷50mm; Pswitch: 120W; 52x47x104mm; -25÷90°C
Body dimensions: 52x47x104mm
Manufacturer series: BN 20
Safety switches features: actuating distance depending on actuating magnet; key activation on the front; side key activation
Type of sensor: reed switch
Switched current, max.: 3A
Operating temperature: -25...90°C
Electrical connection: M16 x2
IP rating: IP67
Leads: screw
Body material: aluminium
Kind of output: bistable x2
Switched voltage: max. 250V AC; max. 250V DC
Switching capacity: 0.12kW; 120VA
Range: 5...50mm
Related items: 101057534; 101057536; 101060163; 151057553
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис BN 20-2RZ-M16 SCHMERSAL
Category: Reed Sensors, Description: Reed switch; Range: 5÷50mm; Pswitch: 120W; 52x47x104mm; -25÷90°C, Body dimensions: 52x47x104mm, Manufacturer series: BN 20, Safety switches features: actuating distance depending on actuating magnet; key activation on the front; side key activation, Type of sensor: reed switch, Switched current, max.: 3A, Operating temperature: -25...90°C, Electrical connection: M16 x2, IP rating: IP67, Leads: screw, Body material: aluminium, Kind of output: bistable x2, Switched voltage: max. 250V AC; max. 250V DC, Switching capacity: 0.12kW; 120VA, Range: 5...50mm, Related items: 101057534; 101057536; 101060163; 151057553, кількість в упаковці: 1 шт.
