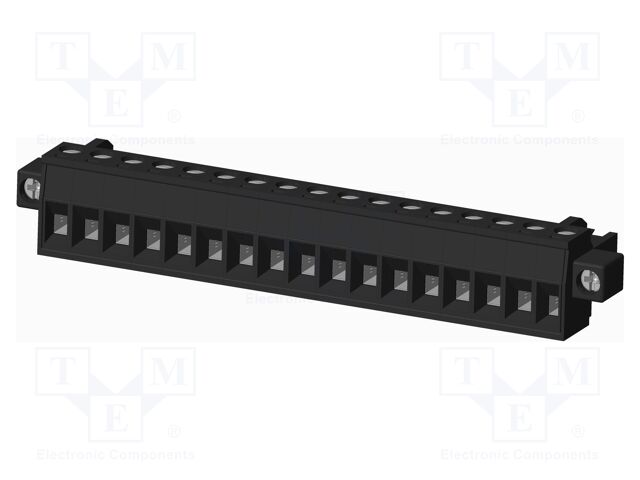

TJ1771070000G AMPHENOL ANYTEK
Виробник: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 5mm; straight; plug; female; UL94V-0
Type of connector: pluggable terminal block
Contacts pitch: 5mm
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable; for panel mounting
Electrical mounting: screw terminal
Wire size: 24AWG...12AWG
Flammability rating: UL94V-0
Body material: PA66
Colour: black
Contact plating: tinned
Operating temperature: -40...115°C
Rated voltage: 300V
Number of pins: 17
Current rating: 12A
Contact material: phosphor bronze
кількість в упаковці: 1 шт
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 5mm; straight; plug; female; UL94V-0
Type of connector: pluggable terminal block
Contacts pitch: 5mm
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable; for panel mounting
Electrical mounting: screw terminal
Wire size: 24AWG...12AWG
Flammability rating: UL94V-0
Body material: PA66
Colour: black
Contact plating: tinned
Operating temperature: -40...115°C
Rated voltage: 300V
Number of pins: 17
Current rating: 12A
Contact material: phosphor bronze
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис TJ1771070000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Pluggable terminal block; 5mm; straight; plug; female; UL94V-0, Type of connector: pluggable terminal block, Contacts pitch: 5mm, Spatial orientation: straight, Connector: plug, Kind of connector: female, Mechanical mounting: for cable; for panel mounting, Electrical mounting: screw terminal, Wire size: 24AWG...12AWG, Flammability rating: UL94V-0, Body material: PA66, Colour: black, Contact plating: tinned, Operating temperature: -40...115°C, Rated voltage: 300V, Number of pins: 17, Current rating: 12A, Contact material: phosphor bronze, кількість в упаковці: 1 шт.
Інші пропозиції TJ1771070000G
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
---|---|---|---|---|---|
TJ1771070000G | Виробник : Amphenol Anytek |
Description: TERM BLOCK PLUG 17POS STR 5MM Features: Mating Flange, Retention Latches (Non-Wire Side) Packaging: Bulk Color: Black Mounting Type: Free Hanging (In-Line) Number of Positions: 17 Pitch: 0.197" (5.00mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw Number of Levels: 1 Wire Gauge or Range - AWG: 12-24 AWG Positions Per Level: 17 Plug Wire Entry: 180° Contact Mating Finish: Tin Part Status: Active Current - UL: 20 A Voltage - UL: 300 V |
товар відсутній |
||
TJ1771070000G | Виробник : Amphenol Anytek | Pluggable Terminal Blocks 500 TB PLU PLU WF UP |
товар відсутній |
||
TJ1771070000G | Виробник : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Pluggable terminal block; 5mm; straight; plug; female; UL94V-0 Type of connector: pluggable terminal block Contacts pitch: 5mm Spatial orientation: straight Connector: plug Kind of connector: female Mechanical mounting: for cable; for panel mounting Electrical mounting: screw terminal Wire size: 24AWG...12AWG Flammability rating: UL94V-0 Body material: PA66 Colour: black Contact plating: tinned Operating temperature: -40...115°C Rated voltage: 300V Number of pins: 17 Current rating: 12A Contact material: phosphor bronze |
товар відсутній |
