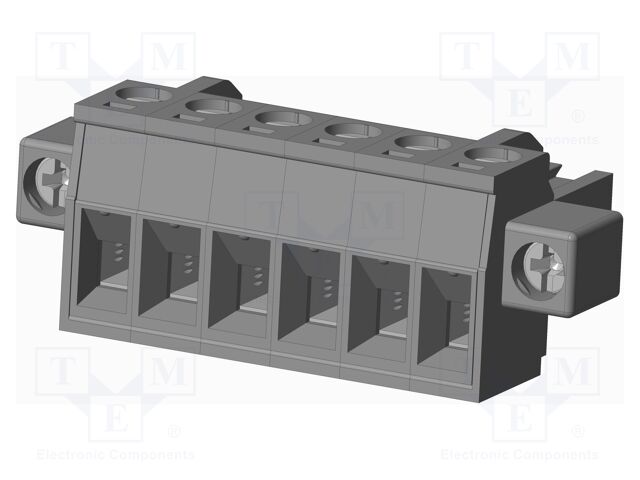

TJ0651870000G AMPHENOL ANYTEK
Виробник: AMPHENOL ANYTEKCategory: Pluggable terminal blocks
Description: Pluggable terminal block; 5.08mm; straight; plug; female; UL94V-0
Body material: PA66
Mechanical mounting: for cable; for panel mounting
Rated voltage: 300V
Operating temperature: -40...115°C
Current rating: 12A
Flammability rating: UL94V-0
Number of pins: 6
Contact material: phosphor bronze
Contacts pitch: 5.08mm
Wire size: 24AWG...12AWG
Electrical mounting: screw terminal
Spatial orientation: straight
Colour: grey
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис TJ0651870000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Pluggable terminal block; 5.08mm; straight; plug; female; UL94V-0, Body material: PA66, Mechanical mounting: for cable; for panel mounting, Rated voltage: 300V, Operating temperature: -40...115°C, Current rating: 12A, Flammability rating: UL94V-0, Number of pins: 6, Contact material: phosphor bronze, Contacts pitch: 5.08mm, Wire size: 24AWG...12AWG, Electrical mounting: screw terminal, Spatial orientation: straight, Colour: grey, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Contact plating: tinned, кількість в упаковці: 1 шт.
Інші пропозиції TJ0651870000G
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
|---|---|---|---|---|---|
| TJ0651870000G | Виробник : Amphenol Anytek |
Description: TERM BLOCK PLUG 6POS STR 5.08MM Features: Mating Flange, Retention Latches (Non-Wire Side) Packaging: Bulk Color: Gray Mounting Type: Free Hanging (In-Line) Number of Positions: 6 Pitch: 0.200" (5.08mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw Number of Levels: 1 Wire Gauge or Range - AWG: 12-24 AWG Positions Per Level: 6 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 20 A Voltage - UL: 300 V |
товар відсутній |
||
| TJ0651870000G | Виробник : Amphenol Anytek |
Pluggable Terminal Blocks 508 TB PLU PLU WF UP |
товар відсутній |
||
|
|
TJ0651870000G | Виробник : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Pluggable terminal block; 5.08mm; straight; plug; female; UL94V-0 Body material: PA66 Mechanical mounting: for cable; for panel mounting Rated voltage: 300V Operating temperature: -40...115°C Current rating: 12A Flammability rating: UL94V-0 Number of pins: 6 Contact material: phosphor bronze Contacts pitch: 5.08mm Wire size: 24AWG...12AWG Electrical mounting: screw terminal Spatial orientation: straight Colour: grey Type of connector: pluggable terminal block Connector: plug Kind of connector: female Contact plating: tinned |
