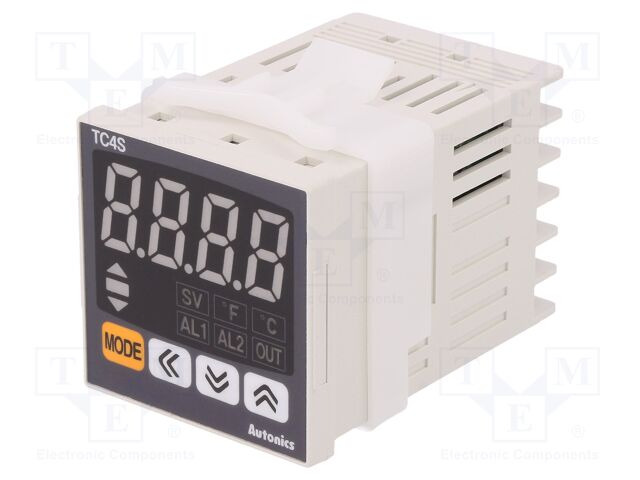

TC4S-N2R AUTONICS
Виробник: AUTONICS
Category: Temperature Regulators
Description: Module: regulator; temperature; SPST-NO; OUT 2: SSR; on panel; TC4S
Kind of display used: LED
Body dimensions: 48x48x70.5mm
Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L
Operating temperature: -10...50°C
Manufacturer series: TC4S
Mounting: on panel
Supply voltage: 24V AC; 24...48V DC
Output 2 electrical parameters: 12V DC / 20mA
Output 1 electrical parameters: 250V AC / 3A
Kind of output 1: SPST-NO
Kind of output 2: SSR
Display height 1: 15mm
Input 1 properties: RTD; thermocouple
Mounting hole diameter: 45x45mm
Type of module: regulator
Controlled parameter: temperature
Controlled parameter range: -1999...9999
The programming method: foil keypad
Regulation for output 1: ON-OFF; P; PD; PI; PID
Additional functions: LED status indicator
кількість в упаковці: 1 шт
Category: Temperature Regulators
Description: Module: regulator; temperature; SPST-NO; OUT 2: SSR; on panel; TC4S
Kind of display used: LED
Body dimensions: 48x48x70.5mm
Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L
Operating temperature: -10...50°C
Manufacturer series: TC4S
Mounting: on panel
Supply voltage: 24V AC; 24...48V DC
Output 2 electrical parameters: 12V DC / 20mA
Output 1 electrical parameters: 250V AC / 3A
Kind of output 1: SPST-NO
Kind of output 2: SSR
Display height 1: 15mm
Input 1 properties: RTD; thermocouple
Mounting hole diameter: 45x45mm
Type of module: regulator
Controlled parameter: temperature
Controlled parameter range: -1999...9999
The programming method: foil keypad
Regulation for output 1: ON-OFF; P; PD; PI; PID
Additional functions: LED status indicator
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис TC4S-N2R AUTONICS
Category: Temperature Regulators, Description: Module: regulator; temperature; SPST-NO; OUT 2: SSR; on panel; TC4S, Kind of display used: LED, Body dimensions: 48x48x70.5mm, Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L, Operating temperature: -10...50°C, Manufacturer series: TC4S, Mounting: on panel, Supply voltage: 24V AC; 24...48V DC, Output 2 electrical parameters: 12V DC / 20mA, Output 1 electrical parameters: 250V AC / 3A, Kind of output 1: SPST-NO, Kind of output 2: SSR, Display height 1: 15mm, Input 1 properties: RTD; thermocouple, Mounting hole diameter: 45x45mm, Type of module: regulator, Controlled parameter: temperature, Controlled parameter range: -1999...9999, The programming method: foil keypad, Regulation for output 1: ON-OFF; P; PD; PI; PID, Additional functions: LED status indicator, кількість в упаковці: 1 шт.
