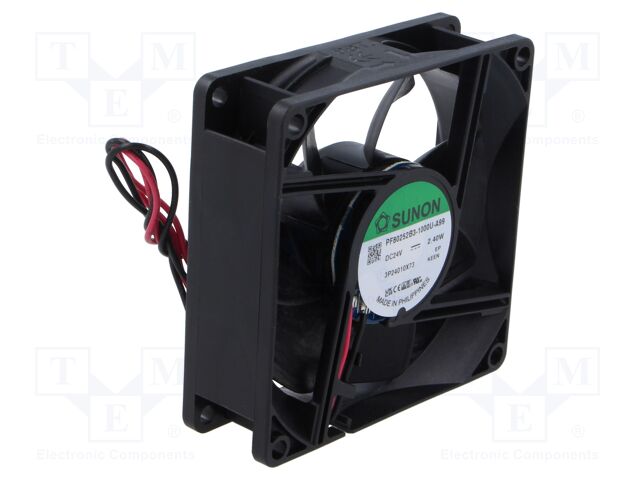

PF80252B3-1000U-A99 SUNON
Виробник: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x25mm; 90.05m3/h; 42.5dBA; ball; 24AWG
Flammability rating: UL94V-0
Operating temperature: -10...70°C
Type of fan: DC
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 0.115A
Supply voltage: 24V DC
Leads: lead x2
Operating voltage: 10...27.6V
Fan dimensions: 80x80x25mm
Fan motor: brushless DC
Impeller material: thermoplastic
Insulation class: A
Kind of Bearing: ball
Fan efficiency: 90.05m3/h
Static pressure: 7.62mm H2O
Noise level: 42.5dBA
Rotational rate/speed: 4200 (±10%)rpm
Power consumption: 2.76W
Wire size: 24AWG
Additional functions: autorestart
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x25mm; 90.05m3/h; 42.5dBA; ball; 24AWG
Flammability rating: UL94V-0
Operating temperature: -10...70°C
Type of fan: DC
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 0.115A
Supply voltage: 24V DC
Leads: lead x2
Operating voltage: 10...27.6V
Fan dimensions: 80x80x25mm
Fan motor: brushless DC
Impeller material: thermoplastic
Insulation class: A
Kind of Bearing: ball
Fan efficiency: 90.05m3/h
Static pressure: 7.62mm H2O
Noise level: 42.5dBA
Rotational rate/speed: 4200 (±10%)rpm
Power consumption: 2.76W
Wire size: 24AWG
Additional functions: autorestart
на замовлення 493 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 574.54 грн |
10+ | 491.54 грн |
50+ | 463.07 грн |
200+ | 420.36 грн |
Відгуки про товар
Написати відгук
Технічний опис PF80252B3-1000U-A99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 80x80x25mm; 90.05m3/h; 42.5dBA; ball; 24AWG, Flammability rating: UL94V-0, Operating temperature: -10...70°C, Type of fan: DC, Kind of fan: axial, Min. insulation resistance: 10MΩ, Enclosure material: thermoplastic, Current rating: 0.115A, Supply voltage: 24V DC, Leads: lead x2, Operating voltage: 10...27.6V, Fan dimensions: 80x80x25mm, Fan motor: brushless DC, Impeller material: thermoplastic, Insulation class: A, Kind of Bearing: ball, Fan efficiency: 90.05m3/h, Static pressure: 7.62mm H2O, Noise level: 42.5dBA, Rotational rate/speed: 4200 (±10%)rpm, Power consumption: 2.76W, Wire size: 24AWG, Additional functions: autorestart, кількість в упаковці: 1 шт.
Інші пропозиції PF80252B3-1000U-A99 за ціною від 504.43 грн до 689.45 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PF80252B3-1000U-A99 | Виробник : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 80x80x25mm; 90.05m3/h; 42.5dBA; ball; 24AWG Flammability rating: UL94V-0 Operating temperature: -10...70°C Type of fan: DC Kind of fan: axial Min. insulation resistance: 10MΩ Enclosure material: thermoplastic Current rating: 0.115A Supply voltage: 24V DC Leads: lead x2 Operating voltage: 10...27.6V Fan dimensions: 80x80x25mm Fan motor: brushless DC Impeller material: thermoplastic Insulation class: A Kind of Bearing: ball Fan efficiency: 90.05m3/h Static pressure: 7.62mm H2O Noise level: 42.5dBA Rotational rate/speed: 4200 (±10%)rpm Power consumption: 2.76W Wire size: 24AWG Additional functions: autorestart кількість в упаковці: 1 шт |
на замовлення 493 шт: термін постачання 14-21 дні (днів) |
|
|||||||||||
PF80252B3-1000U-A99 | Виробник : Sunon Fans |
Description: FAN AXIAL 80X25MM 24VDC WIRE Features: Auto Restart Packaging: Bulk Voltage - Rated: 24VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Ball RPM: 4200 RPM Air Flow: 53.0 CFM (1.48m³/min) Width: 25.00mm Termination: 2 Wire Leads Approval Agency: CCC, CE, cURus, TUV Fan Type: Tubeaxial Noise: 42.5dB(A) Static Pressure: 0.300 in H2O (74.7 Pa) Power (Watts): 2.4 W |
товар відсутній |
||||||||||||
PF80252B3-1000U-A99 | Виробник : Sunon | DC Fans DC Axial Fan, 80x80x25mm, 24VDC, Ball, Lead Wires, Auto Restart, 2018Q1-MP |
товар відсутній |
