![PEC02SFEN PEC02SFEN](https://media.digikey.com/Renders/Sullins%20Renders/S1252E-02.jpg)

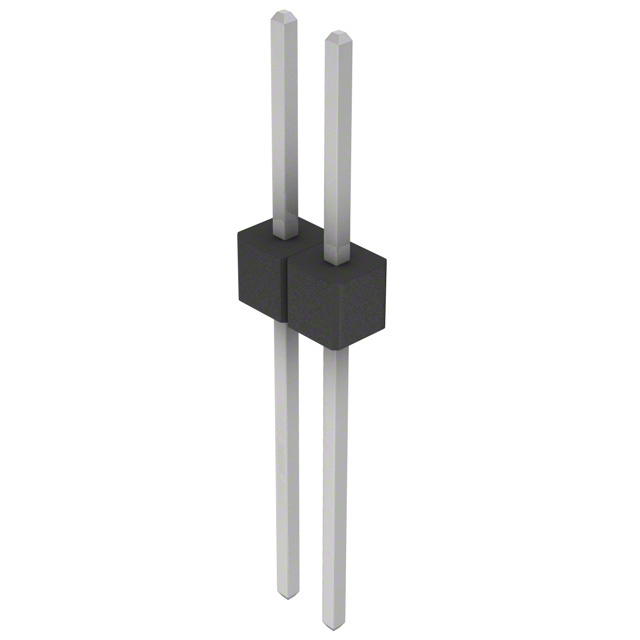

PEC02SFEN Sullins Connector Solutions
![PAGE112-113%20.100%20MALE%20HDR.pdf](/images/adobe-acrobat.png)
Description: CONN HEADER VERT 2POS 2.54MM
Packaging: Bulk
Connector Type: Header, Breakaway
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 2
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 100.0µin (2.54µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.520" (13.21mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.938" (23.83mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Contact Length - Mating: 0.318" (8.08mm)
на замовлення 324 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
11+ | 28.13 грн |
12+ | 25.92 грн |
25+ | 22.2 грн |
50+ | 17.7 грн |
100+ | 17.01 грн |
250+ | 15.27 грн |
Відгуки про товар
Написати відгук
Технічний опис PEC02SFEN Sullins Connector Solutions
Description: CONN HEADER VERT 2POS 2.54MM, Packaging: Bulk, Connector Type: Header, Breakaway, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 2, Number of Rows: 1, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 100.0µin (2.54µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.520" (13.21mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.938" (23.83mm), Insulation Material: Polybutylene Terephthalate (PBT), Contact Length - Mating: 0.318" (8.08mm).
