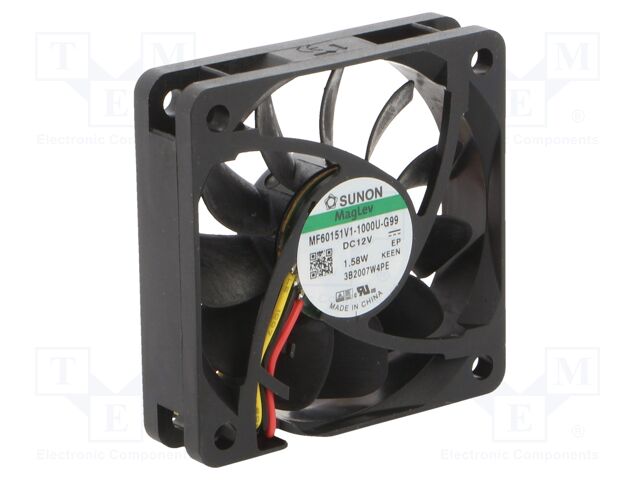

MF60151V1-1000U-G99 SUNON
Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x15mm; 44.62m3/h; 34.2dBA; Vapo; 4700rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 60x60x15mm
Power consumption: 1.53W
Current rating: 0.127A
Fan efficiency: 44.62m3/h
Noise level: 34.2dBA
Kind of Bearing: Vapo
Signal output: F type
Rotational rate/speed: 4700rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x3
Operating temperature: -10...70°C
Cable length: 0.29m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 4.57mm H2O
Wire size: 26AWG
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x15mm; 44.62m3/h; 34.2dBA; Vapo; 4700rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 60x60x15mm
Power consumption: 1.53W
Current rating: 0.127A
Fan efficiency: 44.62m3/h
Noise level: 34.2dBA
Kind of Bearing: Vapo
Signal output: F type
Rotational rate/speed: 4700rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x3
Operating temperature: -10...70°C
Cable length: 0.29m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 4.57mm H2O
Wire size: 26AWG
на замовлення 3485 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
2+ | 291.31 грн |
10+ | 235.28 грн |
50+ | 206.81 грн |
200+ | 170.84 грн |
Відгуки про товар
Написати відгук
Технічний опис MF60151V1-1000U-G99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 60x60x15mm; 44.62m3/h; 34.2dBA; Vapo; 4700rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V, Fan dimensions: 60x60x15mm, Power consumption: 1.53W, Current rating: 0.127A, Fan efficiency: 44.62m3/h, Noise level: 34.2dBA, Kind of Bearing: Vapo, Signal output: F type, Rotational rate/speed: 4700rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x3, Operating temperature: -10...70°C, Cable length: 0.29m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 4.57mm H2O, Wire size: 26AWG, кількість в упаковці: 1 шт.
Інші пропозиції MF60151V1-1000U-G99 за ціною від 205.01 грн до 375.79 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MF60151V1-1000U-G99 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 60x60x15mm; 44.62m3/h; 34.2dBA; Vapo; 4700rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V Fan dimensions: 60x60x15mm Power consumption: 1.53W Current rating: 0.127A Fan efficiency: 44.62m3/h Noise level: 34.2dBA Kind of Bearing: Vapo Signal output: F type Rotational rate/speed: 4700rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x3 Operating temperature: -10...70°C Cable length: 0.29m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 4.57mm H2O Wire size: 26AWG кількість в упаковці: 1 шт |
на замовлення 3485 шт: термін постачання 14-21 дні (днів) |
|
|||||||||||
MF60151V1-1000U-G99 | Виробник : Sunon | MF60151V1-1000U-G99 |
на замовлення 4008 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
MF60151V1-1000U-G99 | Виробник : Sunon Fan | MF60151V1-G99-A DC, 12VDC, 60x60x15mm, 44.62m3/h, 34.2dBA, Vapo, 1.53W, 4.5...13.8V 3 провода |
на замовлення 35 шт: термін постачання 5 дні (днів) |
||||||||||||
MF60151V1-1000U-G99 Код товару: 190419 |
Корпусні та встановлювальні вироби > Вентилятори та аксесуари |
товар відсутній
|
|||||||||||||
MF60151V1-1000U-G99 | Виробник : Sunon Fans |
Description: FAN AXIAL 60X15MM 12VDC WIRE Packaging: Bulk Features: Auto Restart, Speed Sensor (Tach) Voltage - Rated: 12VDC Size / Dimension: Square - 60mm L x 60mm H Bearing Type: Vapo-Bearing™ RPM: 4700 RPM Air Flow: 26.4 CFM (0.739m³/min) Width: 15.00mm Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 3 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 34.2dB(A) Static Pressure: 0.180 in H2O (44.8 Pa) Part Status: Active Power (Watts): 1.53 W |
товар відсутній |
||||||||||||
MF60151V1-1000U-G99 | Виробник : Sunon | DC Fans DC Fan, 60x15mm, 12VDC, 26.4CFM, 1.53W, 34.2dBA, 4700RPM, 0.18 inch H2O, Vapo Bearing, Also Known as D06077570G-01 |
товар відсутній |
