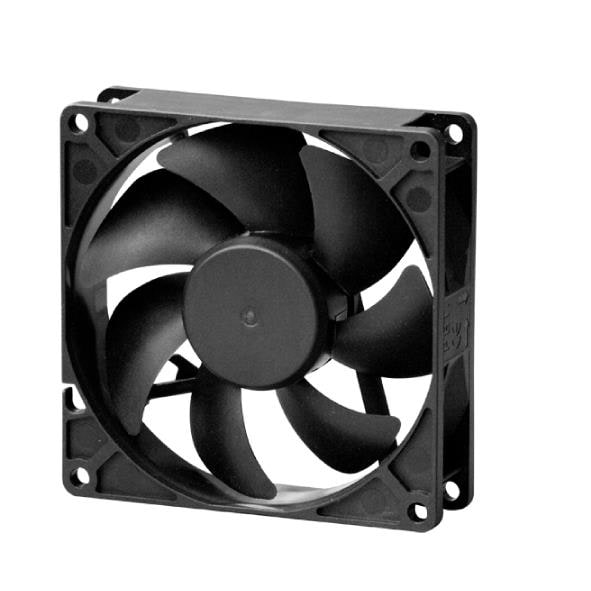

HA92251V4-000U-999 Sunon Fans
Виробник: Sunon Fans
Description: FAN AXIAL 92X25MM 12VDC WIRE
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Vapo-Bearing™
RPM: 1700 RPM
Air Flow: 28.1 CFM (0.787m³/min)
Width: 25.00mm
Weight: 0.039 lb (17.69 g)
Termination: 2 Wire Leads
Approval Agency: CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 17.7dB(A)
Static Pressure: 0.040 in H2O (10.0 Pa)
Power (Watts): 900 mW
Description: FAN AXIAL 92X25MM 12VDC WIRE
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Vapo-Bearing™
RPM: 1700 RPM
Air Flow: 28.1 CFM (0.787m³/min)
Width: 25.00mm
Weight: 0.039 lb (17.69 g)
Termination: 2 Wire Leads
Approval Agency: CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 17.7dB(A)
Static Pressure: 0.040 in H2O (10.0 Pa)
Power (Watts): 900 mW
на замовлення 1 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 371.94 грн |
Відгуки про товар
Написати відгук
Технічний опис HA92251V4-000U-999 Sunon Fans
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 92x92x25mm; 47.77m3/h; 17.7dBA; Vapo; 28AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V, Fan dimensions: 92x92x25mm, Power consumption: 0.9W, Current rating: 0.073A, Fan efficiency: 47.77m3/h, Noise level: 17.7dBA, Kind of Bearing: Vapo, Rotational rate/speed: 1700 (±15%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.3m, Flammability rating: UL94V-0, Fan motor: brushless DC, Static pressure: 1.02mm H2O, Wire size: 28AWG.
Інші пропозиції HA92251V4-000U-999
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
---|---|---|---|---|---|
HA92251V4-000U-999 | Виробник : Sunon | DC Fans DC Fan, 92x25mm, 12VDC, 28.1CFM, 0.9W, 17.7dBA, 1700RPM, 0.04inch H2O, Vapo Bearing, MagLev Motor, Super Silence Series |
товар відсутній |
||
HA92251V4-000U-999 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 92x92x25mm; 47.77m3/h; 17.7dBA; Vapo; 28AWG Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V Fan dimensions: 92x92x25mm Power consumption: 0.9W Current rating: 0.073A Fan efficiency: 47.77m3/h Noise level: 17.7dBA Kind of Bearing: Vapo Rotational rate/speed: 1700 (±15%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.3m Flammability rating: UL94V-0 Fan motor: brushless DC Static pressure: 1.02mm H2O Wire size: 28AWG |
товар відсутній |
