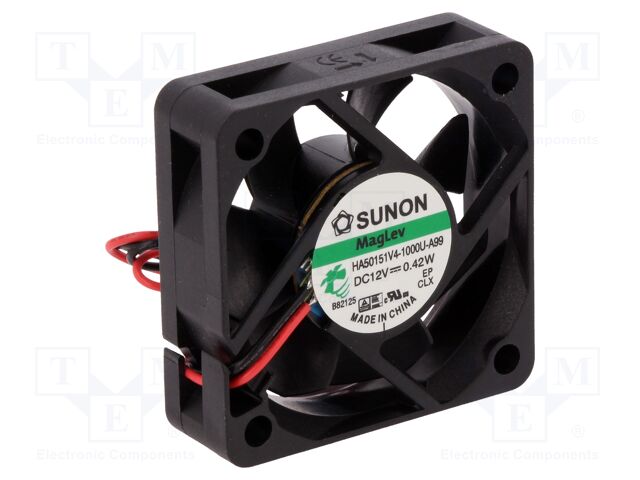

HA50151V4-1000U-A99 SUNON
Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 50x50x15mm; 13.01m3/h; 15.4dBA; Vapo; 3200rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 50x50x15mm
Power consumption: 0.3W
Current rating: 25mA
Fan efficiency: 13.01m3/h
Noise level: 15.4dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3200rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 1.78mm H2O
Wire size: 26AWG
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 50x50x15mm; 13.01m3/h; 15.4dBA; Vapo; 3200rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 50x50x15mm
Power consumption: 0.3W
Current rating: 25mA
Fan efficiency: 13.01m3/h
Noise level: 15.4dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3200rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 1.78mm H2O
Wire size: 26AWG
на замовлення 5108 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
3+ | 183.98 грн |
10+ | 142.37 грн |
50+ | 128.13 грн |
200+ | 114.64 грн |
Відгуки про товар
Написати відгук
Технічний опис HA50151V4-1000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 50x50x15mm; 13.01m3/h; 15.4dBA; Vapo; 3200rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V, Fan dimensions: 50x50x15mm, Power consumption: 0.3W, Current rating: 25mA, Fan efficiency: 13.01m3/h, Noise level: 15.4dBA, Kind of Bearing: Vapo, Rotational rate/speed: 3200rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.3m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 1.78mm H2O, Wire size: 26AWG, кількість в упаковці: 1 шт.
Інші пропозиції HA50151V4-1000U-A99 за ціною від 137.57 грн до 483.24 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HA50151V4-1000U-A99 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 50x50x15mm; 13.01m3/h; 15.4dBA; Vapo; 3200rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V Fan dimensions: 50x50x15mm Power consumption: 0.3W Current rating: 25mA Fan efficiency: 13.01m3/h Noise level: 15.4dBA Kind of Bearing: Vapo Rotational rate/speed: 3200rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.3m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 1.78mm H2O Wire size: 26AWG кількість в упаковці: 1 шт |
на замовлення 5108 шт: термін постачання 14-21 дні (днів) |
|
|||||||||||||
HA50151V4-1000U-A99 | Виробник : Sunon Fans |
Description: FAN AXIAL 50X15MM 12VDC WIRE Packaging: Box Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 50mm L x 50mm H Bearing Type: Vapo-Bearing™ RPM: 3200 RPM Air Flow: 7.7 CFM (0.216m³/min) Width: 15.00mm Weight: 0.073 lb (33.11 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 15.4dB(A) Static Pressure: 0.070 in H2O (17.4 Pa) Part Status: Active Power (Watts): 300 mW |
на замовлення 3775 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||
HA50151V4-1000U-A99 | Виробник : Sunon | DC Fans Axial Fan, 50x50x15mm, 12VDC, 7.7CFM, 0.07"H2O, Vapo, Auto Restart |
на замовлення 185 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||||
HA50151V4-1000U-A99 | Виробник : Sunon | HA50151V4-1000U-A99 |
на замовлення 5133 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||
HA50151V4-1000U-A99 | Виробник : Sunon | HA50151V4-1000U-A99 |
на замовлення 615 шт: термін постачання 21-31 дні (днів) |
|
