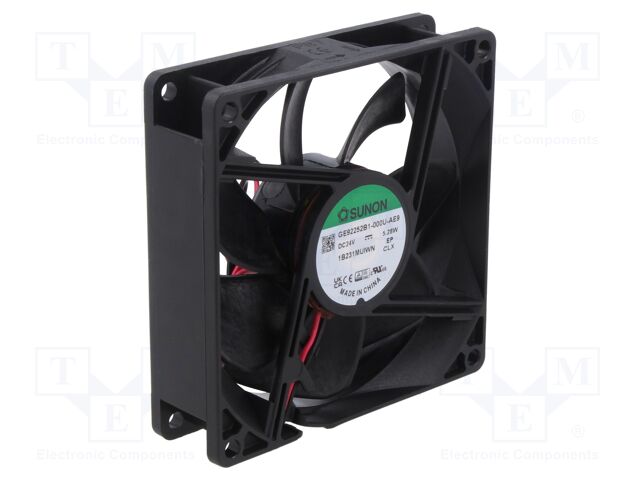

GE92252B1-000U-AE9 Sunon Fans
Виробник: Sunon Fans
Description: FAN AXIAL 92X25MM 24VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 24VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Ball
RPM: 4500 RPM
Air Flow: 75.0 CFM (2.10m³/min)
Width: 25.00mm
Weight: 0.249 lb (112.94 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Ingress Protection: IP68 - Dust Tight, Waterproof
Fan Type: Tubeaxial
Noise: 47.0dB(A)
Static Pressure: 0.350 in H2O (87.2 Pa)
Part Status: Active
Power (Watts): 5.28 W
Description: FAN AXIAL 92X25MM 24VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 24VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Ball
RPM: 4500 RPM
Air Flow: 75.0 CFM (2.10m³/min)
Width: 25.00mm
Weight: 0.249 lb (112.94 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Ingress Protection: IP68 - Dust Tight, Waterproof
Fan Type: Tubeaxial
Noise: 47.0dB(A)
Static Pressure: 0.350 in H2O (87.2 Pa)
Part Status: Active
Power (Watts): 5.28 W
на замовлення 335 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 1422.41 грн |
Відгуки про товар
Написати відгук
Технічний опис GE92252B1-000U-AE9 Sunon Fans
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 92x92x25mm; 126.75m3/h; 47dBA; ball; IP68, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 10...27.6V, Fan dimensions: 92x92x25mm, Power consumption: 5.28W, Current rating: 0.22A, Fan efficiency: 126.75m3/h, Noise level: 47dBA, Kind of Bearing: ball, Rotational rate/speed: 4500 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, IP rating: IP68, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.315m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 8.89mm H2O, Wire size: 24AWG, кількість в упаковці: 1 шт.
Інші пропозиції GE92252B1-000U-AE9 за ціною від 1802.08 грн до 4377.72 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GE92252B1-000U-AE9 | Виробник : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 92x92x25mm; 126.75m3/h; 47dBA; ball; IP68 Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 10...27.6V Fan dimensions: 92x92x25mm Power consumption: 5.28W Current rating: 0.22A Fan efficiency: 126.75m3/h Noise level: 47dBA Kind of Bearing: ball Rotational rate/speed: 4500 (±10%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A IP rating: IP68 Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.315m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 8.89mm H2O Wire size: 24AWG |
на замовлення 222 шт: термін постачання 21-30 дні (днів) |
|
|||||||||
GE92252B1-000U-AE9 | Виробник : Sunon | DC Fans Axial Fan, 92x92x25mm, 24VDC, 75CFM, 0.35"H2O, Ball, Wire, Auto Restart, IP68 |
на замовлення 170 шт: термін постачання 21-30 дні (днів) |
|
|||||||||
GE92252B1-000U-AE9 | Виробник : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 92x92x25mm; 126.75m3/h; 47dBA; ball; IP68 Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 10...27.6V Fan dimensions: 92x92x25mm Power consumption: 5.28W Current rating: 0.22A Fan efficiency: 126.75m3/h Noise level: 47dBA Kind of Bearing: ball Rotational rate/speed: 4500 (±10%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A IP rating: IP68 Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.315m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 8.89mm H2O Wire size: 24AWG кількість в упаковці: 1 шт |
на замовлення 222 шт: термін постачання 14-21 дні (днів) |
|
|||||||||
GE92252B1-000U-AE9 | Виробник : Sunon | DC Fan Axial Ball Bearing 24V 59.4CFM 45.2dB 92 X 92 X 25mm High Speed |
на замовлення 77 шт: термін постачання 21-31 дні (днів) |
|
|||||||||
GE92252B1-000U-AE9 | Виробник : Sunon | DC Fan Axial Ball Bearing 24V 59.4CFM 45.2dB 92 X 92 X 25mm High Speed |
на замовлення 126 шт: термін постачання 21-31 дні (днів) |
|
