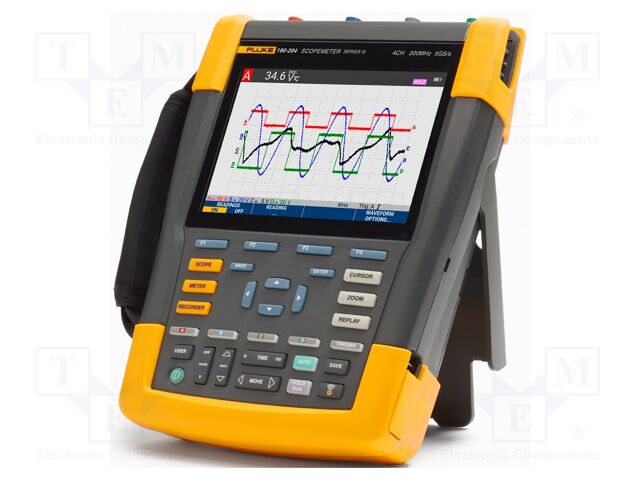

FLUKE-190-204-III-S
Виробник: FLUKE
Category: Portable Oscilloscopes, Scopemeters
Description: Scopemeter; 200MHz; 8bit; colour,LCD; Ch: 4; 2,5Gsps; 10kpts/ch
Kind of display used: colour; LCD
IP rating: IP51
Dimensions: 265x192x70mm
Power supply: rechargeable battery Li-Ion 4800mAh x1
Measuring instrument features: Connect-and-View function that ensures stable, reliable and repeatable signal display without operator; defined part of displayed signal zoom; dust- and splashproof; FFT analysis; impact resistant holster; insulated inputs; mathematical functions: addition, subtraction, multiplication and FFT; measurements by means of cursors; real time clock; waveform trend chart function
Standard equipment: adapter WiFi USB; FLK-TL175 test leads; hand strap; hard case; mains cable; power supply FLK-BC190/830; test probes VPS421; USB cable; user's manual
Battery/ rechargeable battery: rechargeable battery Li-Ion 4800mAh x1
Software: Fluke View
Related items: FLK-BP291
Plug variant: EU
Interface: USB; WiFi
Manufacturer series: Fluke 190-III
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Additional functions: multimeter
Input impedance: 1MΩ/14pF
Type of oscilloscope: scopemeter
Trigger: falling-edge; impulse width; rising-edge
Vertical resolution: 8bit
Max. input voltage: 1kV
Producer guarantee (months): 36
Band: 200MHz
Rise time: 1.7ns
Input sensitivity: 2mV/div...100V/div
Time base: 2n...4s/div
Number of channels: 4
Memory record length: 10kpts/ch
Sampling: 2,5Gsps
Pollution degree: 2
Category: Portable Oscilloscopes, Scopemeters
Description: Scopemeter; 200MHz; 8bit; colour,LCD; Ch: 4; 2,5Gsps; 10kpts/ch
Kind of display used: colour; LCD
IP rating: IP51
Dimensions: 265x192x70mm
Power supply: rechargeable battery Li-Ion 4800mAh x1
Measuring instrument features: Connect-and-View function that ensures stable, reliable and repeatable signal display without operator; defined part of displayed signal zoom; dust- and splashproof; FFT analysis; impact resistant holster; insulated inputs; mathematical functions: addition, subtraction, multiplication and FFT; measurements by means of cursors; real time clock; waveform trend chart function
Standard equipment: adapter WiFi USB; FLK-TL175 test leads; hand strap; hard case; mains cable; power supply FLK-BC190/830; test probes VPS421; USB cable; user's manual
Battery/ rechargeable battery: rechargeable battery Li-Ion 4800mAh x1
Software: Fluke View
Related items: FLK-BP291
Plug variant: EU
Interface: USB; WiFi
Manufacturer series: Fluke 190-III
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Additional functions: multimeter
Input impedance: 1MΩ/14pF
Type of oscilloscope: scopemeter
Trigger: falling-edge; impulse width; rising-edge
Vertical resolution: 8bit
Max. input voltage: 1kV
Producer guarantee (months): 36
Band: 200MHz
Rise time: 1.7ns
Input sensitivity: 2mV/div...100V/div
Time base: 2n...4s/div
Number of channels: 4
Memory record length: 10kpts/ch
Sampling: 2,5Gsps
Pollution degree: 2
на замовлення 1 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 497092.32 грн |
Відгуки про товар
Написати відгук
Технічний опис FLUKE-190-204-III-S FLUKE
Category: Portable Oscilloscopes, Scopemeters, Description: Scopemeter; 200MHz; 8bit; colour,LCD; Ch: 4; 2,5Gsps; 10kpts/ch, Kind of display used: colour; LCD, IP rating: IP51, Dimensions: 265x192x70mm, Power supply: rechargeable battery Li-Ion 4800mAh x1, Measuring instrument features: Connect-and-View function that ensures stable, reliable and repeatable signal display without operator; defined part of displayed signal zoom; dust- and splashproof; FFT analysis; impact resistant holster; insulated inputs; mathematical functions: addition, subtraction, multiplication and FFT; measurements by means of cursors; real time clock; waveform trend chart function, Standard equipment: adapter WiFi USB; FLK-TL175 test leads; hand strap; hard case; mains cable; power supply FLK-BC190/830; test probes VPS421; USB cable; user's manual, Battery/ rechargeable battery: rechargeable battery Li-Ion 4800mAh x1, Software: Fluke View, Related items: FLK-BP291, Plug variant: EU, Interface: USB; WiFi, Manufacturer series: Fluke 190-III, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, Additional functions: multimeter, Input impedance: 1MΩ/14pF, Type of oscilloscope: scopemeter, Trigger: falling-edge; impulse width; rising-edge, Vertical resolution: 8bit, Max. input voltage: 1kV, Producer guarantee (months): 36, Band: 200MHz, Rise time: 1.7ns, Input sensitivity: 2mV/div...100V/div, Time base: 2n...4s/div, Number of channels: 4, Memory record length: 10kpts/ch, Sampling: 2,5Gsps, Pollution degree: 2, кількість в упаковці: 1 шт.
Інші пропозиції FLUKE-190-204-III-S за ціною від 535326.94 грн до 596510.78 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||
---|---|---|---|---|---|---|---|---|---|
+3 |
FLUKE-190-204-III-S | Виробник : FLUKE |
Category: Portable Oscilloscopes, Scopemeters Description: Scopemeter; 200MHz; 8bit; colour,LCD; Ch: 4; 2,5Gsps; 10kpts/ch Kind of display used: colour; LCD IP rating: IP51 Dimensions: 265x192x70mm Power supply: rechargeable battery Li-Ion 4800mAh x1 Measuring instrument features: Connect-and-View function that ensures stable, reliable and repeatable signal display without operator; defined part of displayed signal zoom; dust- and splashproof; FFT analysis; impact resistant holster; insulated inputs; mathematical functions: addition, subtraction, multiplication and FFT; measurements by means of cursors; real time clock; waveform trend chart function Standard equipment: adapter WiFi USB; FLK-TL175 test leads; hand strap; hard case; mains cable; power supply FLK-BC190/830; test probes VPS421; USB cable; user's manual Battery/ rechargeable battery: rechargeable battery Li-Ion 4800mAh x1 Software: Fluke View Related items: FLK-BP291 Plug variant: EU Interface: USB; WiFi Manufacturer series: Fluke 190-III Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010 Additional functions: multimeter Input impedance: 1MΩ/14pF Type of oscilloscope: scopemeter Trigger: falling-edge; impulse width; rising-edge Vertical resolution: 8bit Max. input voltage: 1kV Producer guarantee (months): 36 Band: 200MHz Rise time: 1.7ns Input sensitivity: 2mV/div...100V/div Time base: 2n...4s/div Number of channels: 4 Memory record length: 10kpts/ch Sampling: 2,5Gsps Pollution degree: 2 кількість в упаковці: 1 шт |
на замовлення 1 шт: термін постачання 14-21 дні (днів) |
|
||||
FLUKE-190-204-III-S | Виробник : FLUKE |
Description: FLUKE - FLUKE-190-204-III-S - Oszilloskop, ScopeMeter 190 Series III, 4 Kanäle, isoliert, 200 MHz, 2.5 GSPS, 30kpts, 1.7 ns tariffCode: 90302000 rohsCompliant: Y-EX Lieferumfang des Kits: ScopeMeter, SCC-293-Kit, BC190/830, Akku BP291, vier Tastkopfe VPS410-II-x, Tragegurt, Trageriemen Berechnete Anstiegszeit: 1.7ns hazardous: true hazardCode: 3481 rohsPhthalatesCompliant: YES Abtastrate: 2.5GSPS Aufzeichnungslänge (Speichertiefe): 30kpts usEccn: 3A992.g Netzsteckertyp: - Herstellergewährleistung: 3 Jahre euEccn: NLR Produktpalette: ScopeMeter 190 Series III Bandbreite: 200MHz productTraceability: No Oszilloskopkanäle: 4 Kanäle, isoliert Oszilloskopanzeige: LCD, farbig SVHC: To Be Advised |
на замовлення 1 шт: термін постачання 21-31 дні (днів) |
|
|||||
FLUKE-190-204-III-S | Виробник : Fluke | Hand-held Oscilloscopes FLUKE-190-204-III-S, SCOPEMETER 4 CH. 200MHZ COLOR SCC |
товар відсутній |
