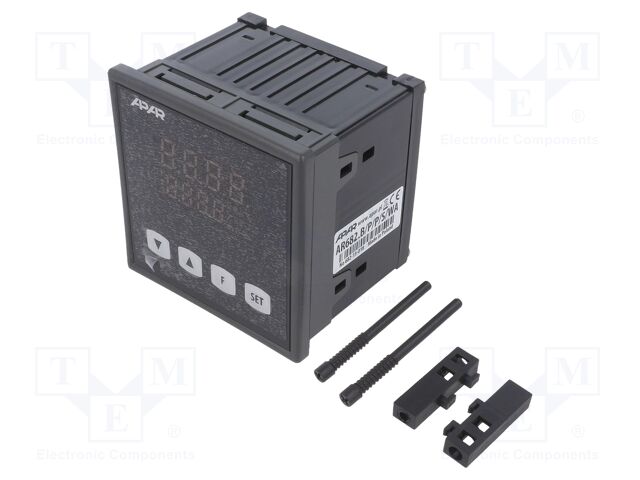

AR682.B/P/P/S/WA APAR
Виробник: APAR
Category: Temperature Regulators
Description: Module: regulator; temperature; SPDT; OUT 2: SPST-NO; OUT 3: SSR
Mounting: on panel
Kind of input 1: 0...2,5kΩ; 0...10V; 0...60mV; 0/4...20mA; universal
Supply voltage: 18...265V AC; 22...350V DC
IP rating: IP65 (from the front)
Body dimensions: 96x96x79mm
The programming method: foil keypad
Operating temperature: 0...50°C
Kind of output 1: SPDT
Kind of output 2: SPST-NO
Kind of output 3: SSR
Kind of output 4: 0/4...20mA
Manufacturer series: AR682
Type of module: regulator
Controlled parameter: temperature
Display parameters: 4-digit
Kind of temperature sensor: Ni100; Pt100; thermocouple B; thermocouple J; thermocouple K; thermocouple R; thermocouple S; thermocouple T
Kind of display used: LED x2
Display height 1: 13mm
Display 2 height: 10.5mm
Input 1 properties: analogue voltage; current analog; RTD; thermocouple
Mounting hole diameter: 89x92mm
Controlled parameter range: -1999...9999
Regulation for output 1: AUTOTUNING; ON-OFF with hysteresis; PID
Regulation for output 2: ON-OFF with hysteresis
Category: Temperature Regulators
Description: Module: regulator; temperature; SPDT; OUT 2: SPST-NO; OUT 3: SSR
Mounting: on panel
Kind of input 1: 0...2,5kΩ; 0...10V; 0...60mV; 0/4...20mA; universal
Supply voltage: 18...265V AC; 22...350V DC
IP rating: IP65 (from the front)
Body dimensions: 96x96x79mm
The programming method: foil keypad
Operating temperature: 0...50°C
Kind of output 1: SPDT
Kind of output 2: SPST-NO
Kind of output 3: SSR
Kind of output 4: 0/4...20mA
Manufacturer series: AR682
Type of module: regulator
Controlled parameter: temperature
Display parameters: 4-digit
Kind of temperature sensor: Ni100; Pt100; thermocouple B; thermocouple J; thermocouple K; thermocouple R; thermocouple S; thermocouple T
Kind of display used: LED x2
Display height 1: 13mm
Display 2 height: 10.5mm
Input 1 properties: analogue voltage; current analog; RTD; thermocouple
Mounting hole diameter: 89x92mm
Controlled parameter range: -1999...9999
Regulation for output 1: AUTOTUNING; ON-OFF with hysteresis; PID
Regulation for output 2: ON-OFF with hysteresis
на замовлення 1 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 12426.14 грн |
