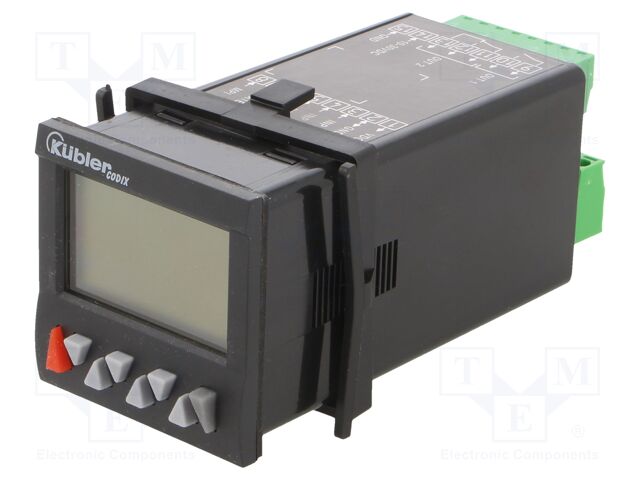

6.924.0101.3A0 KÜBLER

Category: Impulse Counters, Description: Counter: electronical; LCD; pulses/speed/time; -999999÷999999, Type of counter: electronical; electronical, Kind of display used: LCD; LCD, Type of counted signal: pulses/speed/time; pulses/speed/time, Counting range: -999999...999999; -999999...999999, Resetting method: electrical; manual; electrical; manual, Kind of output 1: SPST-NO; SPST-NO, Kind of output 2: SPDT; SPDT, IP rating: IP65; IP65, Kind of input 1: NPN; PNP; NPN; PNP, Electrical input 1 parameters: high level: 0,6xUb...30V; low level: 0...0,2xUb; high level: 0,6xUb...30V; low level: 0...0,2xUb, Kind of input 2: NPN; PNP; NPN; PNP, Electrical input 2 parameters: high level: 0,6xUb...30V; low level: 0...0,2xUb; high level: 0,6xUb...30V; low level: 0...0,2xUb, Max IN1 counting frequency: 55kHz; 55kHz, Operating temperature: -20...65°C; -20...65°C, Body dimensions: 48x48x98mm; 48x48x98mm, Display height 1: 9mm; 9mm, Display 2 height: 7mm; 7mm, Supply voltage: 10...30V DC; 10...30V DC, Mounting hole diameter: 45x45mm; 45x45mm, Electrical connection: screw terminals; screw terminals, Mounting: on panel; on panel, Kind of counter: progressive/reversing; progressive/reversing, IN2 max counting frequency: 55kHz; 55kHz, The additional control inputs: gate; LOCK; MPI; RESET; gate; LOCK; MPI; RESET, Number of operation modes: 4; 4.
