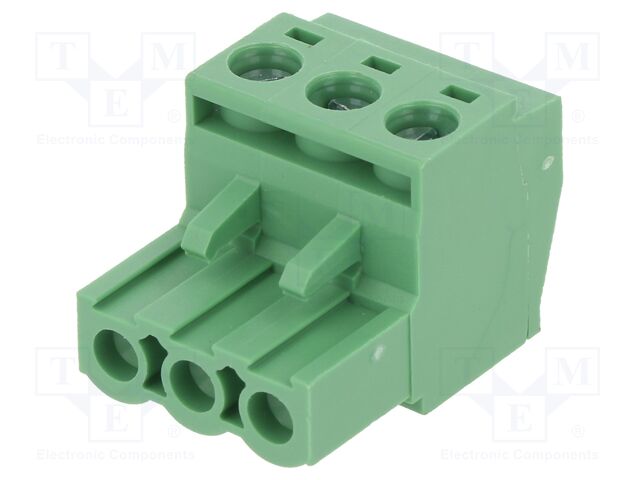

2EDGKT-5.0-03P-14-1000AH DEGSON ELECTRONICS
Виробник: DEGSON ELECTRONICS
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 5mm; ways: 3; straight; plug; female
Type of connector: pluggable terminal block
Contacts pitch: 5mm
Number of ways: 3
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Electrical mounting: cage clamp; screw terminal
Wire cross-section: 2.5mm2
Wire size: 28AWG...12AWG
Flammability rating: UL94V-0
Body material: polyamide 66
Colour: green
Contact plating: tinned
Operating temperature: -40...105°C
Rated voltage: 320V
Locking system: latch
Current rating: 20A
Contact material: phosphor bronze
Connector pinout layout: 1x3
Conform to the norm: UL
Number of terminals: 3
кількість в упаковці: 1 шт
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 5mm; ways: 3; straight; plug; female
Type of connector: pluggable terminal block
Contacts pitch: 5mm
Number of ways: 3
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Electrical mounting: cage clamp; screw terminal
Wire cross-section: 2.5mm2
Wire size: 28AWG...12AWG
Flammability rating: UL94V-0
Body material: polyamide 66
Colour: green
Contact plating: tinned
Operating temperature: -40...105°C
Rated voltage: 320V
Locking system: latch
Current rating: 20A
Contact material: phosphor bronze
Connector pinout layout: 1x3
Conform to the norm: UL
Number of terminals: 3
кількість в упаковці: 1 шт
на замовлення 4 шт:
термін постачання 14-21 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
4+ | 72.62 грн |
21+ | 53.22 грн |
57+ | 48.56 грн |
