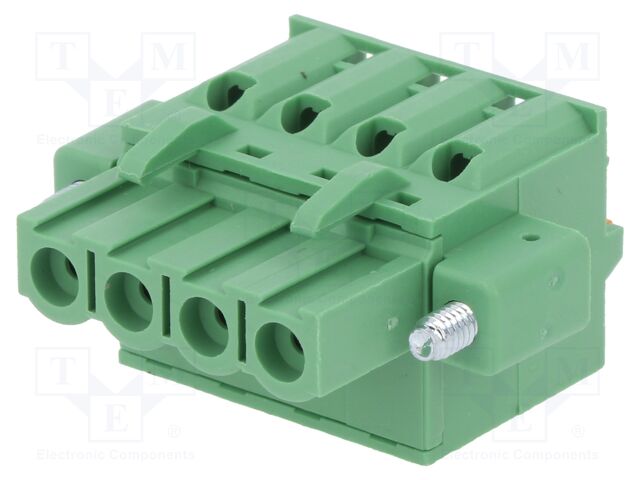

2EDGKDFM-5.0-04P-14-00AH DEGSON ELECTRONICS
Виробник: DEGSON ELECTRONICS
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 5mm; ways: 4; straight; plug; female
Type of connector: pluggable terminal block
Contacts pitch: 5mm
Number of ways: 4
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Electrical mounting: spring clamp
Wire cross-section: 2.5mm2
Wire size: 26AWG...12AWG
Flammability rating: UL94V-0
Body material: polyamide 66
Colour: green
Operating temperature: -40...105°C
Rated voltage: 320V
Locking system: latch; screws
Current rating: 20A
Contact material: phosphor bronze
Connector pinout layout: 1x4
Conform to the norm: CE; UL
Connector variant: with push button
Number of terminals: 4
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 5mm; ways: 4; straight; plug; female
Type of connector: pluggable terminal block
Contacts pitch: 5mm
Number of ways: 4
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Electrical mounting: spring clamp
Wire cross-section: 2.5mm2
Wire size: 26AWG...12AWG
Flammability rating: UL94V-0
Body material: polyamide 66
Colour: green
Operating temperature: -40...105°C
Rated voltage: 320V
Locking system: latch; screws
Current rating: 20A
Contact material: phosphor bronze
Connector pinout layout: 1x4
Conform to the norm: CE; UL
Connector variant: with push button
Number of terminals: 4
на замовлення 102 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
4+ | 116.2 грн |
11+ | 80.92 грн |
30+ | 76.43 грн |
Відгуки про товар
Написати відгук
Технічний опис 2EDGKDFM-5.0-04P-14-00AH DEGSON ELECTRONICS
Category: Pluggable terminal blocks, Description: Pluggable terminal block; 5mm; ways: 4; straight; plug; female, Type of connector: pluggable terminal block, Contacts pitch: 5mm, Number of ways: 4, Spatial orientation: straight, Connector: plug, Kind of connector: female, Mechanical mounting: for cable, Electrical mounting: spring clamp, Wire cross-section: 2.5mm2, Wire size: 26AWG...12AWG, Flammability rating: UL94V-0, Body material: polyamide 66, Colour: green, Operating temperature: -40...105°C, Rated voltage: 320V, Locking system: latch; screws, Current rating: 20A, Contact material: phosphor bronze, Connector pinout layout: 1x4, Conform to the norm: CE; UL, Connector variant: with push button, Number of terminals: 4, кількість в упаковці: 1 шт.
