10026979 FISCHER ELEKTRONIK
Виробник: FISCHER ELEKTRONIK
Category: Pin headers

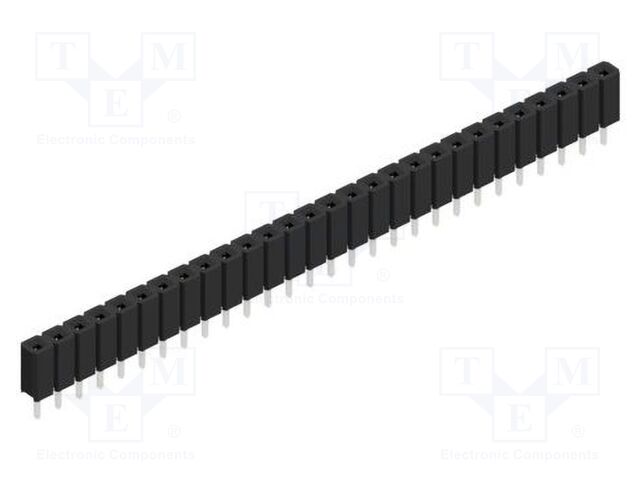

Description: Connector: pin strips; socket; female; PIN: 28; straight; 2.54mm
Operating temperature: -40...200°C
Flammability rating: UL94V-0
Current rating: 3A
Number of pins: 28
Contact material: bronze
Connector pinout layout: 1x28
Contacts pitch: 2.54mm
Rated voltage: 125V
Electrical mounting: THT
Contact plating: gold-plated
Plating thickness: 0.254µm
Spatial orientation: straight
Kind of connector: female
Connector: socket
Type of connector: pin strips
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 28; straight; 2.54mm
Operating temperature: -40...200°C
Flammability rating: UL94V-0
Current rating: 3A
Number of pins: 28
Contact material: bronze
Connector pinout layout: 1x28
Contacts pitch: 2.54mm
Rated voltage: 125V
Electrical mounting: THT
Contact plating: gold-plated
Plating thickness: 0.254µm
Spatial orientation: straight
Kind of connector: female
Connector: socket
Type of connector: pin strips
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис 10026979 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 28; straight; 2.54mm, Operating temperature: -40...200°C, Flammability rating: UL94V-0, Current rating: 3A, Number of pins: 28, Contact material: bronze, Connector pinout layout: 1x28, Contacts pitch: 2.54mm, Rated voltage: 125V, Electrical mounting: THT, Contact plating: gold-plated, Plating thickness: 0.254µm, Spatial orientation: straight, Kind of connector: female, Connector: socket, Type of connector: pin strips.
