10026070 FISCHER ELEKTRONIK
Виробник: FISCHER ELEKTRONIK
Category: Pin headers

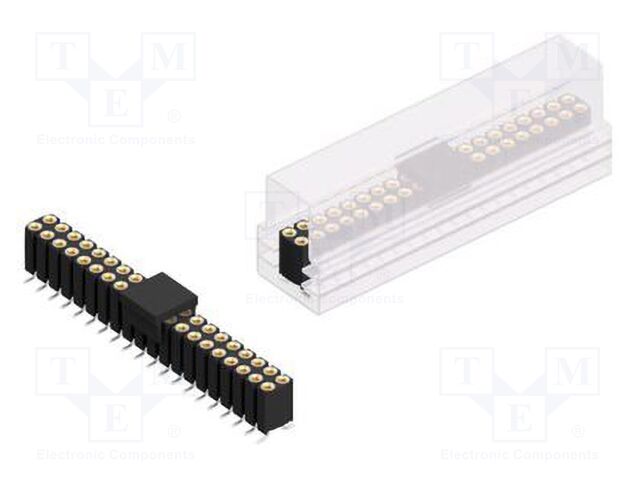

Description: Socket; pin strips; female; PIN: 40; straight; 2.54mm; SMT; 2x20
Operating temperature: -40...163°C
Number of pins: 40
Contact material: beryllium copper
Connector pinout layout: 2x20
Contacts pitch: 2.54mm
Electrical mounting: SMT
Row pitch: 2.54mm
Plating thickness: 0.75µm
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Contact plating: gold-plated
Rated voltage: 150V
Current rating: 3A
Flammability rating: UL94V-0
Category: Pin headers
Description: Socket; pin strips; female; PIN: 40; straight; 2.54mm; SMT; 2x20
Operating temperature: -40...163°C
Number of pins: 40
Contact material: beryllium copper
Connector pinout layout: 2x20
Contacts pitch: 2.54mm
Electrical mounting: SMT
Row pitch: 2.54mm
Plating thickness: 0.75µm
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Contact plating: gold-plated
Rated voltage: 150V
Current rating: 3A
Flammability rating: UL94V-0
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис 10026070 FISCHER ELEKTRONIK
Category: Pin headers, Description: Socket; pin strips; female; PIN: 40; straight; 2.54mm; SMT; 2x20, Operating temperature: -40...163°C, Number of pins: 40, Contact material: beryllium copper, Connector pinout layout: 2x20, Contacts pitch: 2.54mm, Electrical mounting: SMT, Row pitch: 2.54mm, Plating thickness: 0.75µm, Spatial orientation: straight, Type of connector: pin strips, Connector: socket, Kind of connector: female, Contact plating: gold-plated, Rated voltage: 150V, Current rating: 3A, Flammability rating: UL94V-0.
