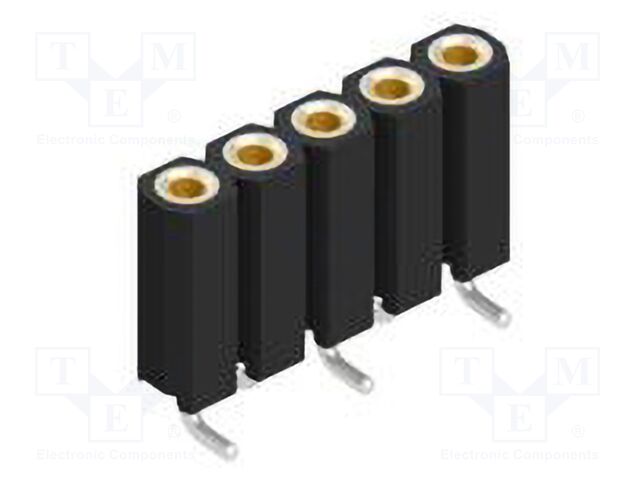

10025877 FISCHER ELEKTRONIK
Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Socket; pin strips; female; PIN: 5; straight; 2.54mm; SMT; 1x5; 150V
Current rating: 3A
Flammability rating: UL94V-0
Number of pins: 5
Contact material: beryllium copper
Connector pinout layout: 1x5
Contacts pitch: 2.54mm
Electrical mounting: SMT
Plating thickness: 0.75µm
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Contact plating: gold-plated
Rated voltage: 150V
Operating temperature: -40...163°C
Category: Pin headers
Description: Socket; pin strips; female; PIN: 5; straight; 2.54mm; SMT; 1x5; 150V
Current rating: 3A
Flammability rating: UL94V-0
Number of pins: 5
Contact material: beryllium copper
Connector pinout layout: 1x5
Contacts pitch: 2.54mm
Electrical mounting: SMT
Plating thickness: 0.75µm
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Contact plating: gold-plated
Rated voltage: 150V
Operating temperature: -40...163°C
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис 10025877 FISCHER ELEKTRONIK
Category: Pin headers, Description: Socket; pin strips; female; PIN: 5; straight; 2.54mm; SMT; 1x5; 150V, Current rating: 3A, Flammability rating: UL94V-0, Number of pins: 5, Contact material: beryllium copper, Connector pinout layout: 1x5, Contacts pitch: 2.54mm, Electrical mounting: SMT, Plating thickness: 0.75µm, Spatial orientation: straight, Type of connector: pin strips, Connector: socket, Kind of connector: female, Contact plating: gold-plated, Rated voltage: 150V, Operating temperature: -40...163°C.
